Release Orchestration using Octopus Deploy

Octopus Deploy is a dedicated release orchestration tool which does not have build capabilities and does not natively integrate with source control, instead it provides a repository to which build artefacts can be pushed. The following scenario is a stack which comprises a customer-facing application (React) front-end and Platform-as-a-Service (Mulesoft Anypoint) back-end.

The back-end deployment is itself an authoritative release solution with a source-driven manifest (see Custom Desired State Management Solution). The client will retrieve the static content from the content delivery network (CloudFlare).

graph TD
  client["🌐"]:::transparent

  subgraph cf["CloudFlare"]
    react-a["Static Content"]
  end

  subgraph ch["CloudHub"]
    patient["Patient API"]
    Admissions["Admissions API"]
  end

  client --> react-a
  client --> patient
  patient --> Admissions

classDef external fill:lightblue
class client external

classDef dashed stroke-dasharray: 5, 5
class cf,ch dashed

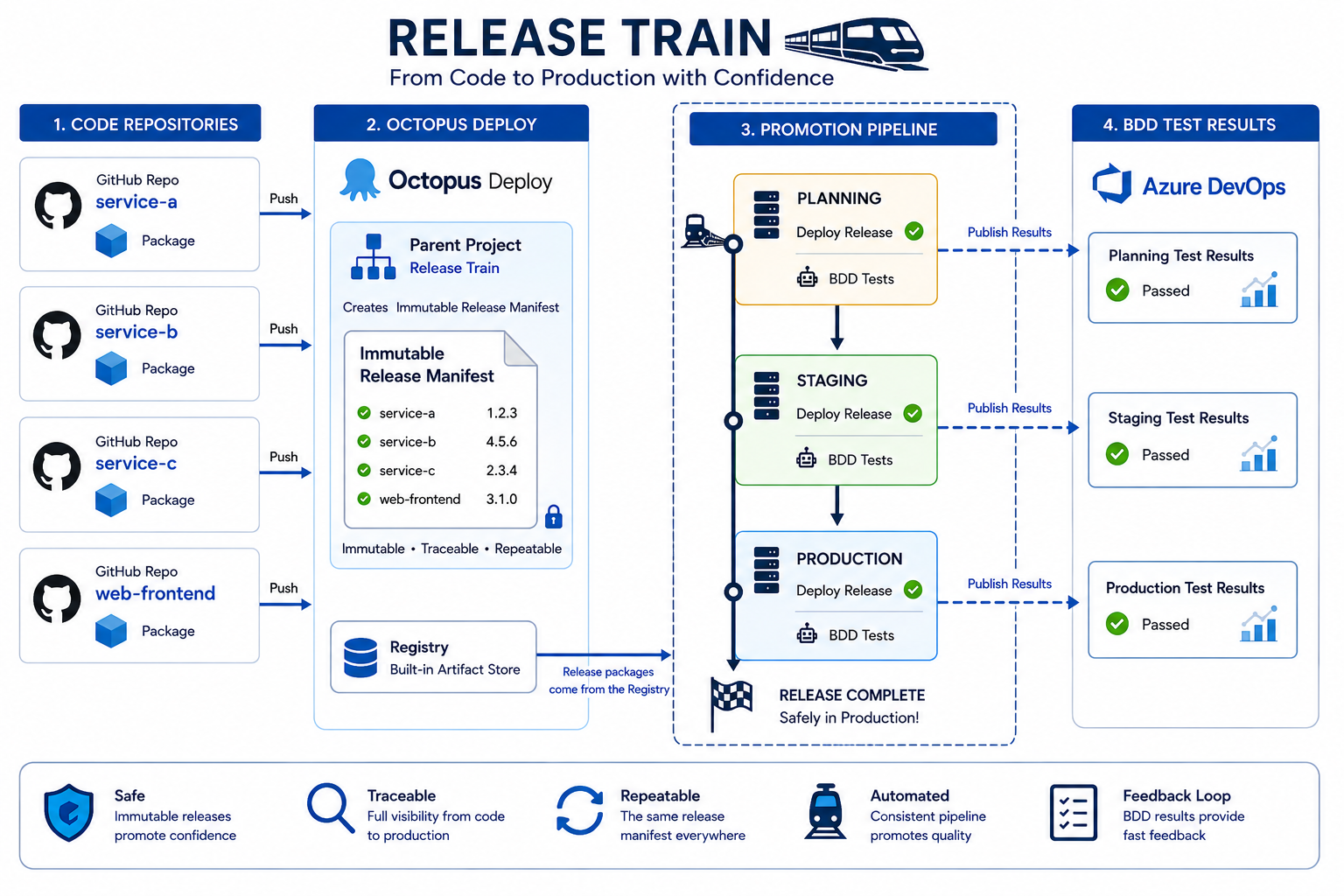

Octopus creates a release whenever either the state management or user interface packages are pushed, but this is not deployed into test until the release manager approves. The API construction and registration with AnyPoint exchange is not described here, this is treated as a prerequisite, see Custom Desired State Management Solution for a detailed breakdown of that process.

graph LR

  subgraph "Patient API"
    Rbuild["Build"] -->
    Rtest["Test"] -->
    Rpublish["Publish"]
  end
  subgraph "AnyPoint Desired State Management"
    Pbuild["Build"] -->
    Ptest["Test"] -->
    Ppublish["Publish"]
  end
  subgraph "Admissions API"
    Sbuild["Build"] -->
    Stest["Test"] -->
    Spublish["Publish"]
  end
  subgraph "CloudFlare Pages"
    Abuild["Build"] -->
    Atest["Test"] -->
    Apublish["Publish"]
  end

  subgraph Release
    TEST:::release
    PROD:::release
  end

  store1[(Anypoint Exchange)]
  store2[(Octopus Package Registry)]

  Rpublish --> store1
  Spublish --> store1
  Ppublish --> store2
  Apublish --> store2

  store1 --> TEST
  store2 --> TEST
  TEST --> PROD

classDef release fill:lightgreen
